# Question

Consider the circuit shown in the figure below where L = 5.50 mH and R2 = 465 Ω.

(a) When the switch is in position a, for what value of R1 will the circuit have a time constant of 15.3 µs?

(b) What is the current in the inductor at the instant the switch is thrown to position b?

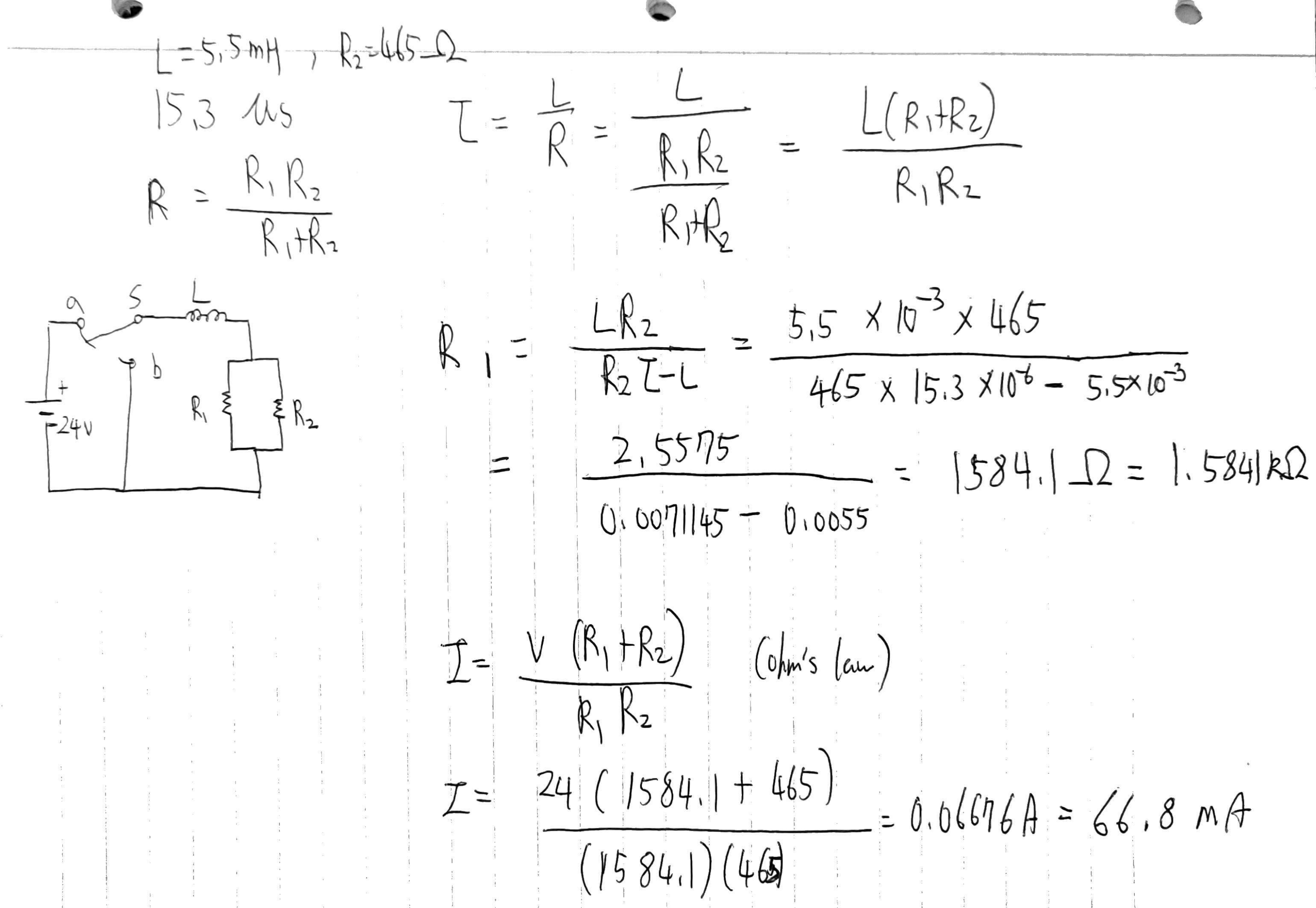

# Explanation

(a) When the switch is in position a, for what value of R1 will the circuit have a time constant of 15.3 µs?

(b) What is the current in the inductor at the instant the switch is thrown to position b?
