Energy Flows: Compartments and Rate Coefficients

포스트 난이도: HOO_Junior

---

# Example Codes

이번 예제코드는 Energy flow를 살펴볼 수 있는 간단한 시뮬레이션 코드이다.  N1부터 N5까지의 시뮬레이션 결과를 아래 예제코드를 통해서 확인할 수 있다. Rate coefficients 값들이 초기값으로 설정되어 있으며 Euler를 통해서 결과를 산출해 냈다.

---

import numpy as np
import matplotlib.pyplot as plt

# Initial compartment sizes
N1 = 2635
N2 = 213
N3 = 62
N4 = 9
N5 = 25

# Rate coefficients
u51 = 1.310
u52 = 5.141
u53 = 0.742
u54 = 0.889
t21 = 1.094
t32 = 1.798
t43 = 0.339
p01 = 4.545
p02 = 8.873
p03 = 5.097
p04 = 1.444
p05 = 184.0
l01 = 0.94

# Driving functions
k = 486  # kcal m^(-2)yr^(-1)
R = 175  # kcal m^(-2)wk^(-1)
M = 400  # kcal m^(-2)wk^(-1)

# Simulation parameters
delta_t = 0.1  # Time step in weeks
num_weeks = int(3 * 52)  # 3 years of simulation (52 weeks/year)

# Lists to store compartment sizes over time
N1_values = [N1]
N2_values = [N2]
N3_values = [N3]
N4_values = [N4]
N5_values = [N5]

# Euler integration to simulate the system over time
for week in range(1, num_weeks + 1):
    # Calculate changes in compartment sizes
    dN1 = delta_t * (p01 - u51 * N1 - u52 * N1 - u53 * N1 - u54 * N1)
    dN2 = delta_t * (u51 * N1 - t21 * N2)
    dN3 = delta_t * (u52 * N1 - t32 * N3)
    dN4 = delta_t * (u53 * N1 + t32 * N3 - t43 * N4)
    dN5 = delta_t * (u54 * N1 + t43 * N4 - p05 * N5)

    # Update compartment sizes
    N1 += dN1
    N2 += dN2
    N3 += dN3
    N4 += dN4
    N5 += dN5

    # Store values for plotting
    N1_values.append(N1)
    N2_values.append(N2)
    N3_values.append(N3)
    N4_values.append(N4)
    N5_values.append(N5)

# Create time values for plotting
time_values = np.arange(0, (num_weeks + 1) * delta_t, delta_t)

# Plot the compartment sizes over time
plt.figure(figsize=(10, 12))

# Plot N1
plt.subplot(5, 1, 1)
plt.plot(time_values, N1_values, label='N1')
plt.ylabel('N1 Size')
plt.title('Result of Compartments N1')

# Plot N2
plt.subplot(5, 1, 2)
plt.plot(time_values, N2_values, label='N2')
plt.ylabel('N2 Size')
plt.title('Result of Compartments N2')

# Plot N3
plt.subplot(5, 1, 3)
plt.plot(time_values, N3_values, label='N3')
plt.ylabel('N3 Size')
plt.title('Result of Compartments N3')

# Plot N4
plt.subplot(5, 1, 4)
plt.plot(time_values, N4_values, label='N4')
plt.ylabel('N4 Size')
plt.title('Result of Compartments N4')

# Plot N5
plt.subplot(5, 1, 5)
plt.plot(time_values, N5_values, label='N5')
plt.xlabel('Time (weeks)')
plt.ylabel('N5 Size')
plt.title('Result of Compartments N5')

plt.tight_layout()
plt.show()

---

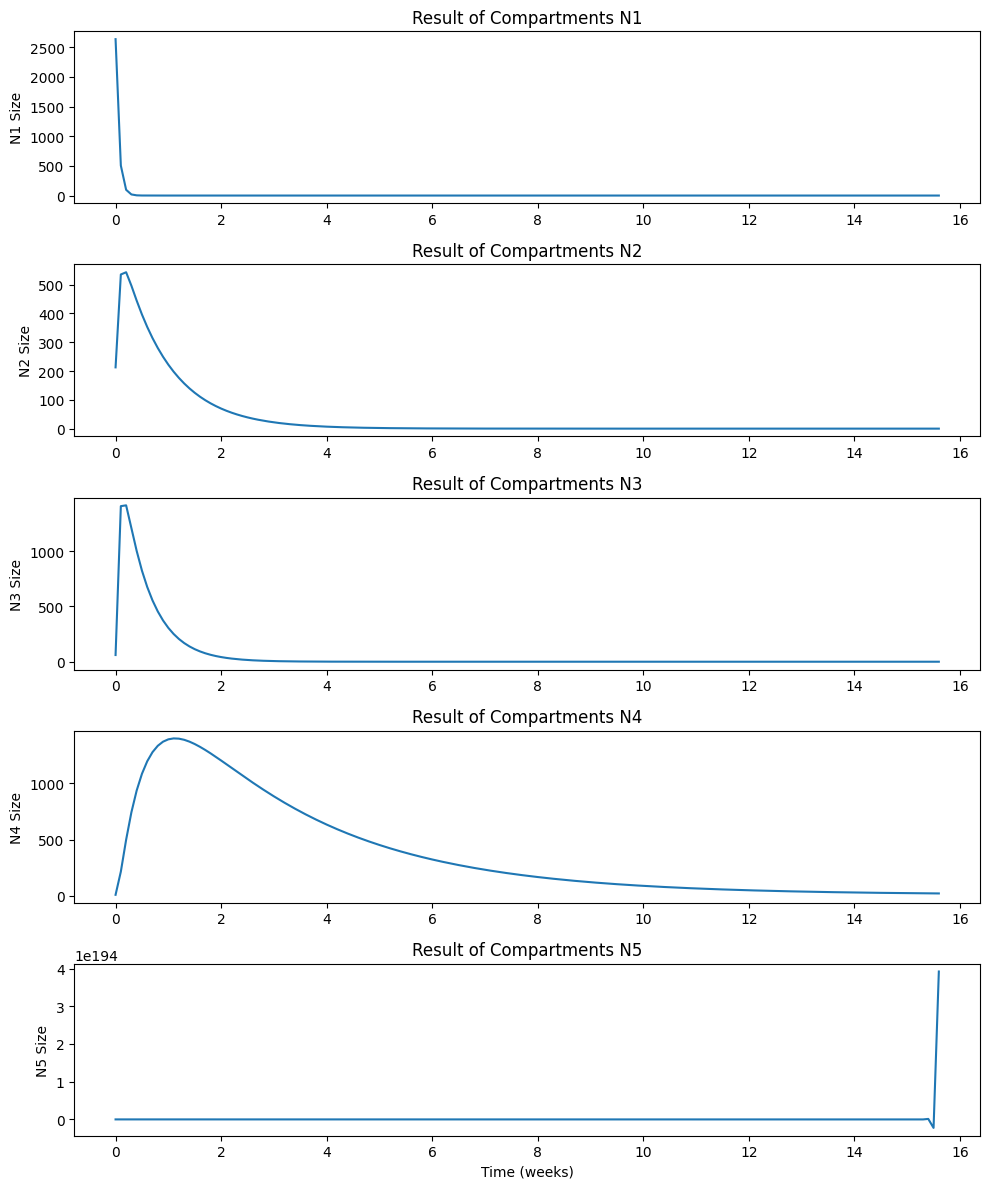

Figure1. Result

---

# github link

https://github.com/WhoisHOO/HOOAI/blob/main/Python%20Examples/compartments_and_rate_coefficients

---
